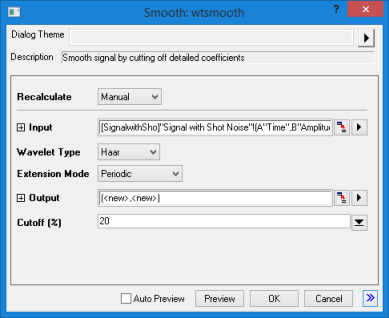

18.12.5.1 The Wavelet Smoothing Dialog Box

Dialog Theme	See Dialog Themes.

Recalculate	See Recalculating Analysis Results.
Input	Specifies the input signal. See Specifying Your Input Data.
Wavelet Type	Specifies the type of the wavelet used in multi-level wavelet decomposition and reconstruction. Haar: Haar wavelet DBN: Daubechies wavelet (N = wavelet order and no. of vanishing moments) BiorNr.Nd: Biorthogonal (Nr = wavelet order or scaling functions used for reconstruction; Nd = order of the functions used for decomposition)
Extension Mode	Periodic: The input signal will be viewed as periodic. Zero-padded: The data points outside the input range will be viewed as zeroes.
Output	Specifies the output for the reconstructed signal.See Output Results.
Cutoff (%)	Specifies the percentage of detail coefficients to be cut off.
