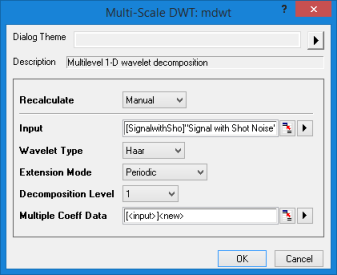

18.12.6.1 The Multi-Scale Wavelet Decomposition Dialog Box

Menu Command: Analysis: Signal Processing: Wavelet: Multi-Scale DWT
Window Types: Workbook, Graph
X-Function Scripting and GUI Examples: mdwt(Pro)

Dialog Theme	See Dialog Themes.

Recalculate	See Recalculating Analysis Results.
Input	Specifies the input signal. See Specifying Your Input Data.
Wavelet Type	Specifies the type of the wavelet. Haar: Haar wavelet DBN: Daubechies wavelet (N = wavelet order and no. of vanishing moments) BiorNr.Nd: Biorthogonal (Nr = wavelet order or scaling functions used for reconstruction; Nd = order of the functions used for decomposition)
Extension Mode	Specifies the end extension mode. Periodic: The input signal will be viewed as periodic. Zero-padded: The data points outside the input range will be viewed as zeroes.
Decomposition Level	Specifies the number of levels for which the input signals is decomposed.
Multiple Coeff Data	Specifies the report data for the results. See Output Results.
