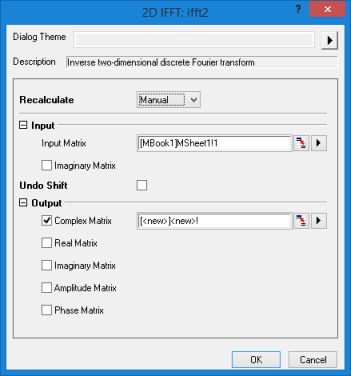

18.11.2.1 The Inverse 2D FFT Dialog Box

Dialog Theme	See Dialog Themes.

Recalculate	See Recalculating Analysis Results.
Input Matrix	Can be complex matrix or real matrix. See Specifying Your Input Data.
Imaginary Matrix	Specifies the imaginary matrix if the real part and imaginary part are separated into a different matrix.
Undo Shift	This checkbox should be selected if the DC component is in the center of the input matrix.
Output Matrix	Specifies the output matrices. See Output Results. Complex Matrix Real Matrix Imaginary Matrix Amplitude Matrix Phase Matrix
