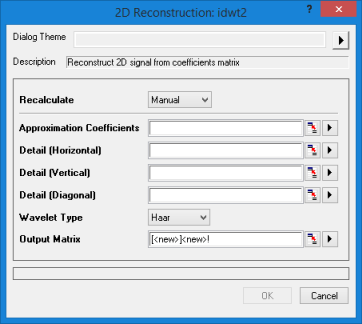

18.13.2.1 The 2D Wavelet Reconstruction Dialog Box

Menu Command: Analysis: Signal Processing: Wavelet: 2D Reconstruction
Window Type: Matrix, 3D/Contour Plots
X-Function Script and GUI Examples: idwt2(Pro)

Dialog Theme	See Dialog Themes.

Recalculate	See Recalculating Analysis Results.
Approximation Coefficients	Specifies the approximation coefficients. See Specifying Your Input Data.
Detail (Horizontal)	Specifies the horizontal detail coefficients. See Specifying Your Input Data.
Detail (Vertical)	Specifies the vertical detail coefficients. See Specifying Your Input Data.
Detail (Diagonal)	Specifies the diagonal detail coefficients. See Specifying Your Input Data.
Wavelet Type	Specifies the type of the wavelet. Haar: Haar wavelet DBN: Daubechies wavelet (N = wavelet order and no. of vanishing moments) BiorNr.Nd: Biorthogonal (Nr = wavelet order or scaling functions used for reconstruction; Nd = order of the functions used for decomposition)
Output Matrix	Specifies the output for the reconstructed signal. See Output Results.
