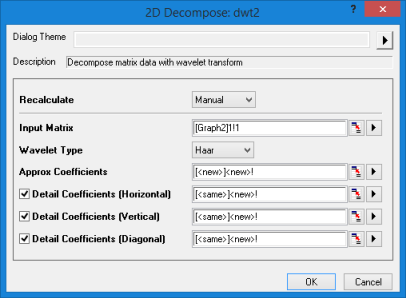

18.13.1.1 The DWT2 Dialog Box

Menu Command: Analysis: Signal Processing: Wavelet: 2D Decompose
Window Type: Matrix, 3D/Contour Plots
X-Function Script and GUI Examples: dwt2(Pro)

Dialog Theme	See Dialog Themes.

Recalculate	See Recalculating Analysis Results.
Input	Specifies the input matrix. See Specifying Your Input Data.
Wavelet Type	Specifies the type of the wavelet. Haar: Haar wavelet DBN: Daubechies wavelet (N = wavelet order and no. of vanishing moments) BiorNr.Nd: Biorthogonal (Nr = wavelet order or scaling functions used for reconstruction; Nd = order of the functions used for decomposition)
Approx Coefficients	Specifies the output matrix for approximation coefficients. See Output Results.
Detail Coefficients (Horizontal)	Specifies the output matrix for horizontal detail coefficients. See Output Results.
Detail Coefficients (Vertical)	Specifies the output matrix for vertical detail coefficients. See Output Results.
Detail Coefficients (Diagonal)	Specifies the output matrix for diagonal detail coefficients. See Output Results.
