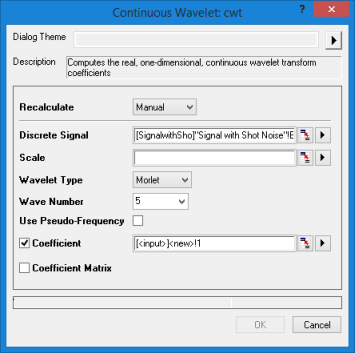

- Menu Command: Analysis: Signal Processing: Wavelet: Continuous Wavelet
- Window Types: Workbook, Graph
- X-Function Scripting and GUI Examples: cwt(Pro)
| Dialog Theme | See Dialog Themes. |
|---|
| Recalculate | |
|---|---|
| Discrete Signal |
Specifies the input signal. See Specifying Your Input Data. |
| Scale |
Specifies the scale vector. All scales should be positive integers. See Specifying Your Input Data. |
| Wavelet Type |
Specifies the type of wavelet that is used for computation.
For more information, see Origin Wavelet Types |
| Wave Number |
If wavelet type is Morlet, use this variable to specify the wave number, which should be not less than 5 and not greater than 20. |
| Use Pseudo-Frequency |
When this checkbox is selected, the image plot created by the coefficient matrix would use the value of pseudo-frequency as the vertical tick label. |
| Pseudo-Frequency |
Specifies a range for outputting the pseudo-frequency |
| Derivative Order |
If wavelet type is DGauss, use this variable to specify the order of derivative, which should be a positive integer less than 9. |
| Coefficient |
Specifies a range for outputting the coefficients. See Output Results. |
| Coefficient Matrix |
Check before this option if you want to output the coefficients to a matrix. Then you can specify the output matrix to the right of the checkbox. See Output Results. |
| Create Image Plot |
The option specifies whether an image plot of the result will be generated. |
