29.13.5 Contour + Streamline

Contour-Streamline

Data Requirements

Matrix: A matrix of Z values.
Worksheet: XYZ columns.

Creating the Graph

Select required data.

Select Plot > Specialized : Contour + Streamline.

Template

ContStream.otpu
ContStreamXYZ.otpu (Installed to the Origin program folder)

Note

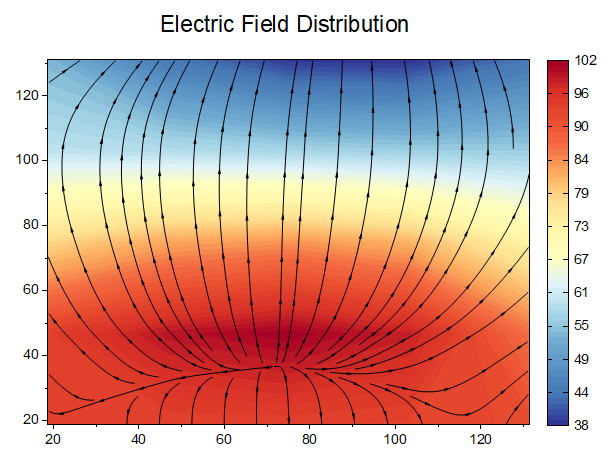

Contour + Streamline graph is a graph with a streamline plot overlaying on the contour line plot.

The X-Function plot_mquiver or plot_xyzquiver is used to create such graph, same as the graph Contour Line + Gradient Vector.
