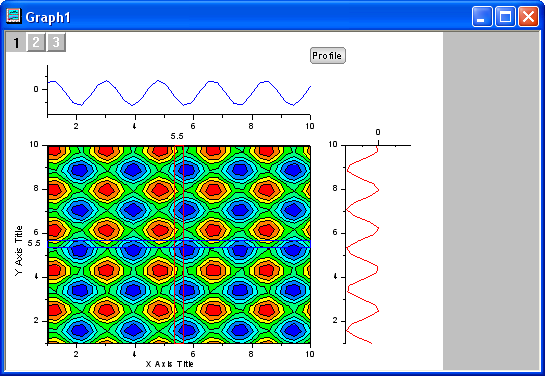

29.19.1 Contour Profiles

Contour-Profile

Data Requirements

• Matrix: A matrix sheet. Multi-object sheet is supported.

or

• Worksheet: worksheet data arranged in XYZ columns, or virtual matrix.

or

• Image: An Image window. Multi-frame image is supported. Refer to this page below to see how to flip through all frames.

Creating the Graph

Activate a matrix or a worksheet or an image window.

From the menu, choose Plot > Contour: Contour Profiles

or

Click the Contour Profiles button on the 3D and Contour Graphs toolbar.

Template

profile_contour.otpu

(Installed to the Origin program folder).

More Information

Please refer to this page for more information on profiling the data.
