Introduction

The factorial ANOVA models consider a completely randomized design for an experiment.

Origin supports following factorial ANOVA models .

In addition to the analysis of variance, Origin also supports various methods for means comparison and actual and hypothetical power analysis.

Assumptions

The ANOVA model has the following assumptions:

• Independence

  The sample cases should be independent of each other. Otherwise you will need to use other ANOVA model, such as the repeated measure ANOVA

• Normality

  Data values of each combination of the groups should be from a normal distribution. We can use a normality test to verify this. However, please note that normal assumptions are usually not "fatal". Even you do not pass the normality test, you may still continue the ANOVA analysis if you have a large sample size.

• Homogeneity

  The variance between the groups should be equal. You can use the Homogeneity Tests(Levene's Test) to verify it. If the assumption is not satisfied, there are several options to consider, including elimination of outliers or data transformation. However, ANOVA is robust to the violation of this assumption. You may continue the study if the group size is equal.

Processing Procedure

Preparing Analysis Data

• Continuous Data

  Data of the dependent variable should be continuous.

• Independent random sample (no outliers)

  The sample cases should be independent of one another, i.e., no repeated measures or matched pairs data. In addition, the ANOVA model is sensitive to the inclusion of outliers. To observe the outliers, we can use Box plots or Outlier tests (Grubb's Test and Dixons Q-Test) to find the outliers and exclude them from the data

Verifying Assumptions

The normality test and the Homogeneity Tests(Levene's Test) can be used to verify the assumptions. Please see Assumptions for more information.

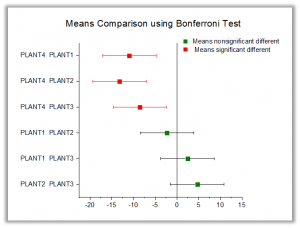

Selecting Mean Comparison Methods

Multiple comparison procedures are commonly used in an ANOVA after obtaining a significant omnibus test result. The significant ANOVA result suggests that the global null hypothesis, H0, is rejected. The H0 hypothesis states that the means are the same across the groups being compared. We can use multiple comparison to determine which means are different.

Origin provides eight different methods for means comparison. They are Tukey, Bonferroni, Dunn-Sidak, Fisher LSD, Scheffe, Holm-Bonferroni, and Holm-Sidak.

Tukey	The Tukey method controls the overall Type I error. When Tukey is used, the overall confidence level is with equal sample sizes, that is, the risk of a Type I error is exactly  ; while for unequal sample sizes, the risk of a Type I error is less than
Bonferroni	The Bonferroni method controls the overall Type I error and is more conservative than Tukey. The method is commonly used for all pairwise comparisons tests.
Fisher's LSD	Fishers LSD test dose not control the overall Type I error. Therefore, it should only be used for the significant overall F-test and the small number of comparisons.
Scheffé	When the number of comparisons is small, Scheffé is very conservative (and more than Bonferroni). Scheffé is more powerful in cases of complex multiple comparisons, so it is used for complex multiple comparisons.
Dunn-Sidak	This is a more powerful method than the Dunnett test method, especially when the number of comparisons is large.
Holm-Bonferroni	This method is less conservative and more powerful than the Bonferroni method. Hence you have more chances to reject null hypotheses with the Bonferroni-Holm method.
Holm-Sidak	The method is more powerful than Holm test. However, it can not be used to compute a set of confidence intervals.

Power Analysis

The power analysis procedure calculates the actual power for the sample data, which let you know the % chance of detecting a difference. It also helps you to calculate the hypothetical power if additional sample sizes are specified

Handling Missing Values

The missing values in the data range will be excluded in the analysis

From Origin 2015, missing values in the grouping range and the corresponding data values will be excluded in analysis. In the previous version, missing values in the grouping range will be considered as a group.

Performing ANOVA
