9.3.7.9 The (Plot Details) Label Tab

PD-Dialog-Label2-Tab

You can specify label source in two ways:

• Using the Label Form drop-down on this tab, you select the source (and form) of the data label. This gives many options including X and Y values, metadata, information from other column(s) in the worksheet, or even a custom label.

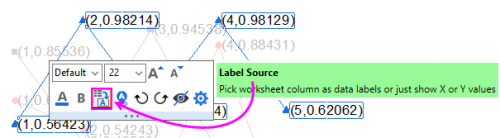

• You can pre-designate a column of data as a Label column and co-select the label column with your Y column, when creating your graph.

Note that pre-designating a worksheet Label column and using it to label a plot no longer creates a label dataset in Plot Details, as it did in earlier versions of Origin. All data labels now use the Label tab controls of the Y dataset, as documented below.

Label Tab Controls

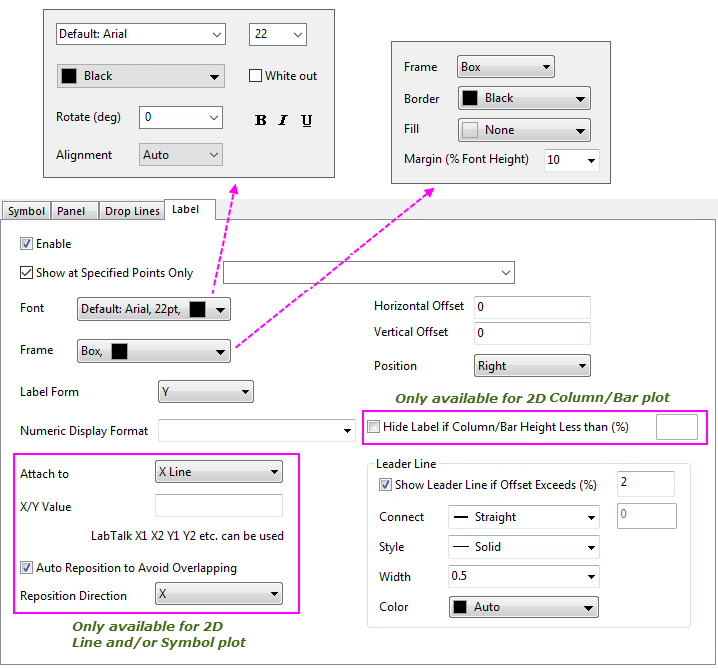

Label tab for 2D line and/or symbol plot or 2D Column/Bar plot in Cartesian coordinate system

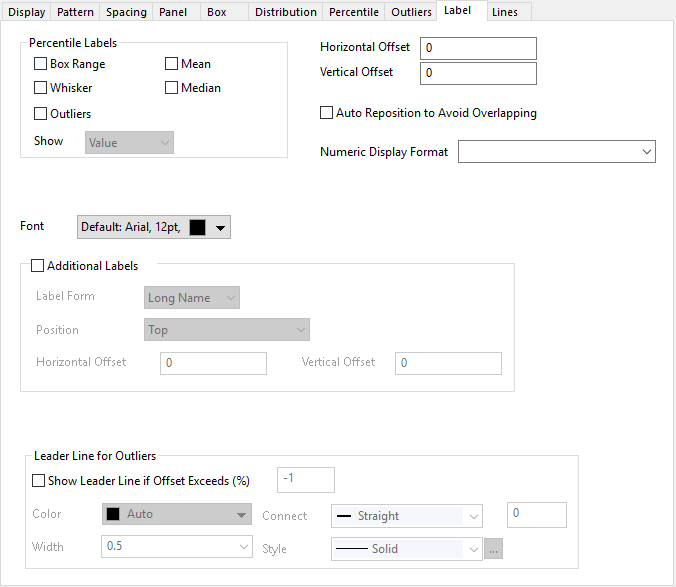

Label tab for Box Chart

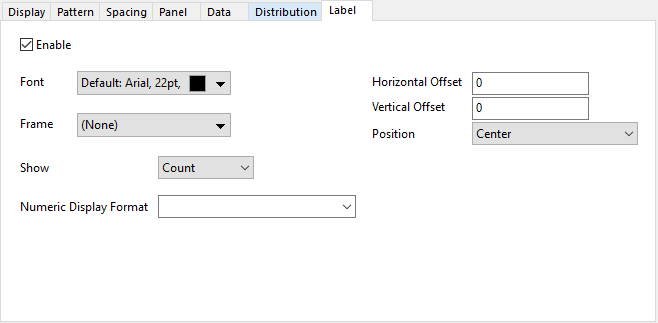

Label tab for Histogram

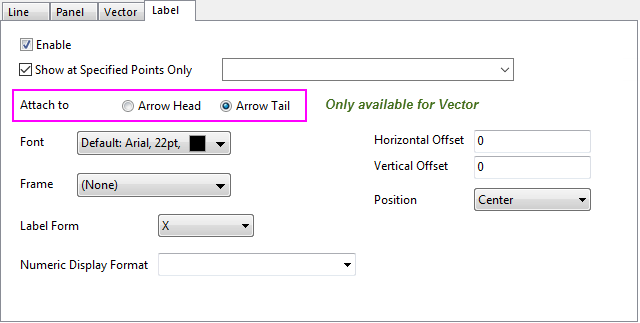

Label tab for 2D Vector

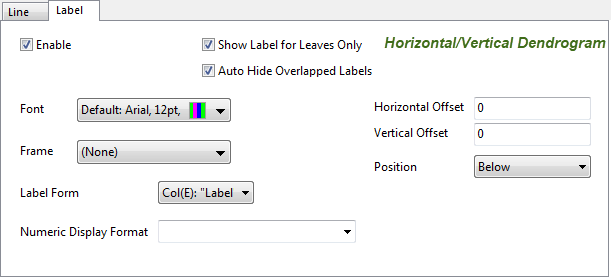

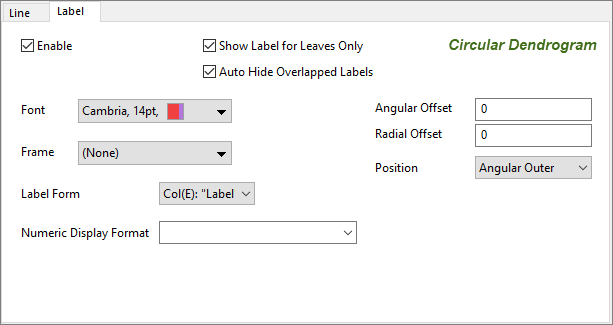

Label tab for Dendrogram

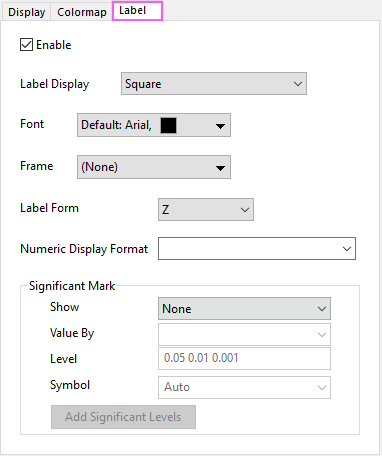

Label tab for Heatmap

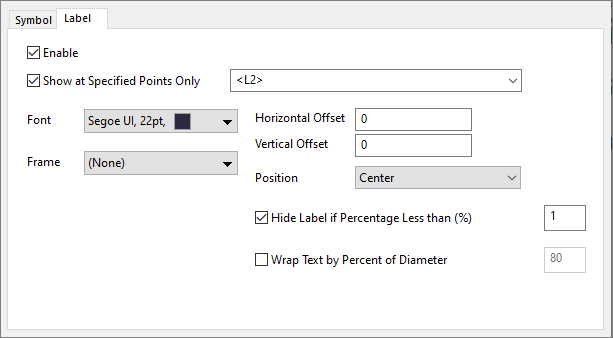

Label tab for Circular Packing Graph

Enable

Select this check box to enable adding labels to data plots.

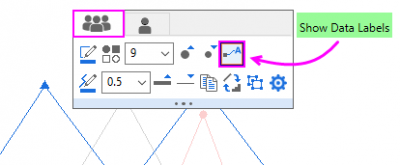

Note that prior to Origin 2020b, checking this box enabled labels for all plots in a plot group. To accommodate improvements to showing data at specified points only, this box now only enables labels for the selected plot, whether or not it is part of a group. However, you can still use the Show Data Labels button on the Mini Toolbar to label all plots. To add data labels to ALL plots in your group, simultaneously: In the graph window, click to select any plot in the group. On the Mini Toolbar "group" tab, click Show Data Labels. To customize what is displayed by the label, click to select a label and from the Mini Toolbar, click Label Source and choose how you want to label data points. Note that available Label Sources will vary by plot type and available column label row data (see Mini Toolbar tables). For information on specifying Custom strings, see Numeric Display Format/Format Strings, below.

Show at Specified Points Only

Check this box to label specified data points only. Once enabled, use the list box to locate labels by:

• <drop line>: Labels will be added only at drop line locations (specified on the Drop Lines tab). Note that drop lines can be located by interpolation of actual data points whereas labels can only be added to actual data points. Therefore, only drop lines from actual data points can be labeled in this way.
• <L#>: For the Circular Packing graph, you can select <L#> to decide the node labels of which level will be shown, such as <L1> means show the labels for the parent nodes in first level. And, you also can select <Leaves> to just show the labels for leaves(nodes in the last level of each hierarchy line).
• Begin or Beg or -1: Label will be added to the first data point within the layer.
• End or 0: Label will be added to the last data point within current layer.
• Max/Min: Label the point with maximum/minimum Y/Z.
• By dataset: Pick a dataset from the drop-down list to use for labeling. Values will be assigned to points by row index.
• By row index or X value: Refer to the following table.

Syntax	Description	Example
a b c d e	Show labels at space-separated list of row indices	1 4 5 9
n:m:s	Show labels from rows n to m, skipping every s rows	2:0:5
x=a b d g	Show labels at x values	x=3.5 7.8 10.2 14.0
[BookN]sheetM!col(A)	Show labels at row indices contained in specified column	[Book1]Sheet2!Col(A)
x=[BookN]sheetM!col(A)	Show labels at x values listed in specified column	x=[Book1]Sheet2!Col(A)

One use of this feature might be to use plot metadata to label individual plots instead of using a standard graph legend. For more information, see FAQ-1065 How to label each line plot with a legend-type entry?

Percentile Labels

Enable the percentile labels for the box chart.

Font

Font

Select the desired font for label text.

Select Default: FontName to use the font determined by the Default drop-down list on the Text Fonts tab of the Options dialog box.(Preferences: Option).

Size

Type or select the desired font size (in points) for the label text.

The default size is determined by the Size combination box value in the Text Tool group on the Text Fonts tab of the Options dialog box (Preferences: Options).

Color

Select a color for the labels.

If color is set to Auto and the Auto Color of Label Follows Symbol box is selected on the Miscellaneous tab (page level) of Plot Details, then label color follows symbol color.

If color is set to Auto and the Auto Color of Label Follows Symbol box is cleared on the Miscellaneous tab (page level) of Plot Details, then label color will be chosen to display in highest contrast to the background color.

White Out

Select this check box to put a white background behind each label.

Rotate (deg)

Type or select the angle, in degrees, by which to rotate the label.

• Positive values rotate the label counter-clockwise.
• Negative values rotate it clockwise.

Zero degrees is horizontal text.

Emphasis

This checkbox is only available for special points.
When a data point becomes special, its properties will follow that of the plot until you customize it. Emphasis means the Bold, Italic and Underline label formats of this special point follows the plot. Uncheck it to edit the formatting buttons below.

The formatting buttons

Click the text formatting buttons (Bold, Italic, and Underline) to format the label text.

Alignment

Used to align multi-line data labels. Not available for all plot types.

Auto: Follow the Position setting:

• If Position = Right, position labels to the right of the labeled point and left-align multi-line labels.
• If Position = Left, position labels to the left of the labeled point and right-align multi-line labels.
• If Position = Center/Above/Below, center-align multi-line labels.

Other combinations are possible by setting Alignment = Left, Right or Center.

Frame

Frame

Specify whether add a frame around the label text. This option is not available for Box Chart.

Three selections are available for this drop-down list: None, Box and Shadow.

• None is select by default; meanwhile, Border and Fill color control will be disabled.
• When Box is selected, a box will be added as a frame around the label text.
• When Shadow is selected, a box and its shadow will be added around the label text.

Please note that the Frame option will be set to Auto for the special point by default. It means that the settings of special point will follow that of the whole plot. Of cause, you can customize these settings for the special point for your own needs.

Border

When Box or Shadow is select as Frame, you can set a border color for box of the labels.

Fill

When Box or Shadow is select as Frame, you can set a fill color for box of the labels.

Margin(% Font Height)

Adjust the margin of the frame in the percent of font height. The top/bottom/left/right margin shares the same value. This option is not available for Box Chart.

Please note that this option will be set to Auto for the special point by default. It means the settings of special point will follow that of the whole plot. Of cause, you can customize these settings for the special point for your own needs.

Label Source

Label Form

Specify the quantities or data set to be used for creating the label.

Numeric Display Format/Format String

• When Label Form is set to X, Y or (X/Y) or Col(ColumnShortName), a Numeric Display Format box becomes available. See Origin Formats. Supported formats include D (date) and T (time) options as long as the date and time data display in the worksheet as numeric Julian Date values.

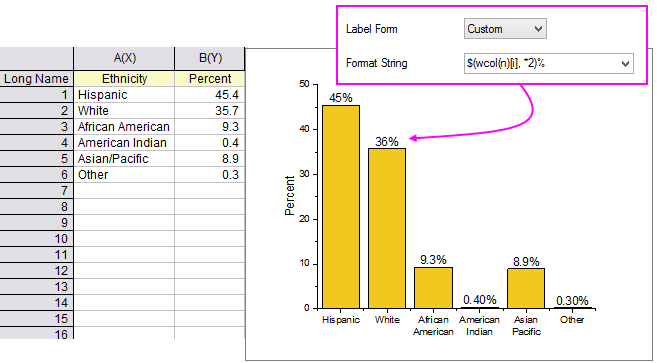

• When Label Form = Custom, a Format String box becomes available. See Syntax and notations used in plot label.
• Note that clicking on the Numeric Display Format or Format String lists shows prototyped formats.
• Use %(CRLF) (Carriage Return Line Feed) in Format String to define multi-line labels. E.g. Set Format String as $(col(C)[i], .2) %(CRLF) $(col(E)[i], S.1) to define 2 line label, with values in column C display 2 decimal places while values in column E display with scientific notation with 1 decimal place.

Numeric Display Format Notes:

• If you have applied a Formula to axis tick labels, you can display the formula-adjusted tick value as opposed to the actual data (scale) value by entering X or Y into Numeric Display Format (e.g. if you have entered a formula for Y axis labels, set Label Form = Y and Numeric Display Format = Y). Please note, if you want to the label value follow the axis major tick label format, such as decimal digit place, you can enter Xt or Yt for the Numeric Display Format box.

Format String Notes:

• In this box, column designators col() and wcol() and arbitrary fixed strings can be combined, as desired.
• The %() substitution and $() substitution can be used here (for example, $(wcol(n)[i], *4) translates to "show the Y values of the current plot and set decimal places to 4" or %(?,@LL) translates to "show the Long Name of current Y column as labels", with L indicating the Long Name of current column -- see Column Label Characters for a full list of the column label rows' substitute characters).
• Columns to the left or right of the current Y column can be referred to by column index (e.g. col(2)[i] or wcol(n+1)[i]), or by Short or Long Name (e.g. col(B)[i] or col(Percent)[i]).
• Numeric and date/time formats are modified using these specifiers.
• Before Origin 9.0, you could only use $(x) to get numeric values. Origin 9.0 and later support x$/y$/z$ which is useful for categorical data. For example, %(X$) is used to return categorical data in the x column, whereas $(x) only shows the index value of the categorical data.

Show

This drop-down list is only available for Histogram graph.
You can use this option to specify which values to show as labels, Count, Percentage(relative frequency for each bin in percent format) or Both.

Attach to

This group is only available for Vector graph.
Choose to place labels to Arrow Head or Arrow Tail. If the vector graph is created from XYXY dataset, the coordinates the label shows will be that of the end point the label attaches to.

Auto Offset

This checkbox is only available for special points.
When a data point becomes special, its properties will follow that of the plot until you customize it. Auto Offset means the label position of this special point follows the plot. Uncheck it to customize Horizontal Offset and Vertical Offset.

Label Offset Units

Label offset is measured as a percentage of the font height. Enter a positive or negative value to adjust label position.

• Horizontal Offset
• Vertical Offset
• Angular Offset (Circular Dendrogram)
• Radial Offset (Circular Dendrogram)

Position

Specify the label position. This option is not available for Box Chart.

Hide Label if Column/Bar Height Less than (%)

This control is only available for 2D Column/Bar graphs.

Use it to hide the column/bar label if the height/length of column/bar is less than the specified value. Only whole numbers are supported.

Critical Length = percentage value% * Y axis length

Hide Label if Percentage Less than (%)

This control is only available for Circular Packing graphs.

Use it to automatically hide labels for categories whose fraction accounts for less than N%.

Wrap Text by Percent of Diameter

This control is only available for Circular Packing graphs.

Use it to automatically wrap labels to a percentage of category diameter.

Advanced Position Controls

These controls are only available when the plot type is line/symbol in the 2D Cartesian coordinate system.

Attach to

Specify the reference position of the data label. The data label position will be calculated based on the Horizontal Offset, Vertical Offset and Position settings from the reference position.

X/Y Value

This text box is only available when Attach to is set as either X Line or Y Line.

It is used to specify the Value that determines the reference position. The value can be an arbitrary double, or can be LabTalk notations such as X1 X2 Y1 Y2. X1/X2 refers to the From/To values of the X axis, and this is similar for Y1 and Y2.

Auto Reposition of Data Labels

They are used for repositioning overlapping data labels.

Auto Reposition to Avoid Overlapping

This check box is used to specify whether to turn on reposition to avoid overlapping. If it is not selected, the positions of data label remain relative to data even though they are overlapping with other data labels, data points, or leader lines.

Reposition Direction

This drop-down menu is only available when Auto Reposition to Avoid Overlapping is checked.
It is used to specify the direction to move data labels when re-position needs to be applied. Choose between X and Y to re-position the data labels either along X axis or along Y axis.

Leader Line/Leader Line for Outliers

The leader line is a line object connecting the data label and its reference position (determined by the Attach to drop-down list).

Show Leader Line if Offset Exceeds (%)

This check box controls display of the leader line. Leader lines will only be shown if the offset between data labels and data points exceeds a certain critical length. The critical length is defined using the Percent Value in the text box next to the check box.

Critical Length = Percent Value% * (Layer Height + Layer Width)/2.

Connect

Select the leader line connection type. The seven options are Straight, Polyline-Horz, Polyline-Vert, Step-Horz, Step-Vert, Horizontal and Vertical . Polyline-Horz and Polyline-Vert create three segment lines where the middle segment is angled. Step-Horz and Step-Vert create three segment lines where the middle segment is perpendicular.

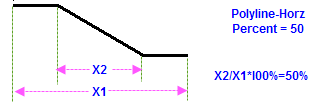

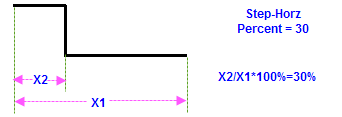

If Polyline-Horz or Polyline-Vert is chosen, you can change the percent of horizontal or vertical distance between two inflection points in the text box after the Connect drop-down list (see the below Image(1)). Similarly, if Step-Horz or Step-Vert is chosen, you can specify the position of the inflection point by the percent of horizontal or vertical distance in the text box after the Connect drop-down list (see the below Image(2)).

Image(1)	Image(2)

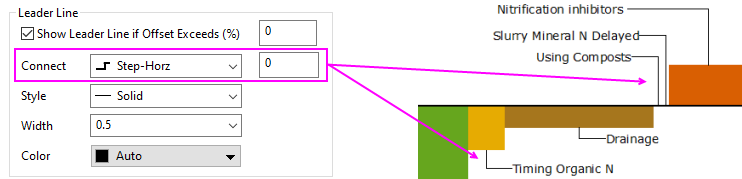

To obtain an "L-shaped" leader line as in the following image, set Connect = Step-Horz and enter 0 in the accompanying text box.

Style

Select the line style of the leader line.

Width

Determine the width of the leader line.

Color

Determine the color of leader line either by system color or custom color. If it is set as Auto, the color setting of leader line will follow the color of data labels.

Show Label for Leaves Only

This control is only available for Dendrogram graphs.

Check this check box to show label of the leaves only. It means the label of nodes will be hidden.

Auto Hide Overlapped Labels

This control is only available for Dendrogram graphs.

Check this check box to hide the overlapped labels automatically.

Label Display

This drop-down option is only available for the Heatmap graph, including Heatmap with Split Tiles.

It supports Square, Upper Triangular, Upper Triangular without diagonal, Lower Triangular Lower Triangular without diagonal and By Value four display styles for the labels.

When you select By Value, for the label values set by Label Form, you can set a value condition to decide which cells should show the labels.

Addtional Labels

Add additional labels for a box chart.

• Label Form: You can choose one column label row as the labels. Selecting <Custom> from the drop-down list, a string box becomes available to let you choose or enter a syntax to refer to a label variable.

  See Syntax and notations used in plot label.

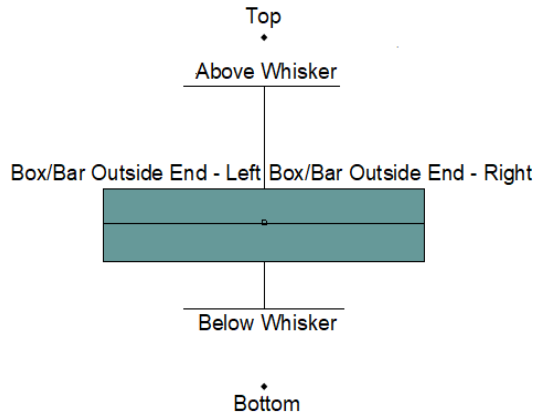

• Position: You can choose how to position the labels around the boxes.



  When Box Type is Bar or Bar + Data, Bottom and Below Whisker will not be listed. For Box Type is Data, only Top and Bottom will be listed.

  When Boxes in Panels, you can select a column while Label Form =<Custom>, then content in first row of panels from selected column will be shown as labels for panels.

• Horizontal/Vertical Offset: Adjust the offset of the labels from the position you have set with Position control.

Signficant Mark

This control group can be used to add significance marks on the heatmap cells.

Show

Specofy whare to show the siginificant marks.

Value by

This editable combo list can specify the data source to decide siginificant marks.

Level

Enter the significant levels to divide the data source. These ranges will be used to decide the marks which will be shown for the values.

Symbol

Enter the symbols as significance marks. By default Auto is selected, which provides number of * acorrding to number of value in Significant Level.

Add Significant Levels

Click it to add a footnote below the graph to show the significant levels.

For example, if Level is set 0,05 0.01 0.001, and Symbol is set to Auto(* ** ***)

• when 0.01<value<=0.05, the mark will display as *
• when 0.001<value<=0.01, the mark will display as **
• when value<=0.001, the mark will display as ***

And the footnote for significant levels will show: * ≤ 0.05 ** ≤ 0.01 *** ≤ 0.001
