Data: Import from File: NI TDM (TDM, TDMS)


If you do not see this file type, choose Data: Import from File: Add/Remove File Types...

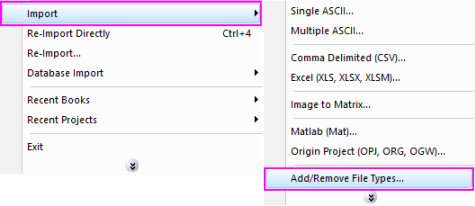

File Import Add Menu.png

To add drag & drop support for a file type, see Import Filter Manager.

This X-Function supports file re-import. See this topic for details.

Brief Information

Import National Instruments TDM and TDMS files(TDMS does not support data/time format)

Additional Information

Minimum Origin Version Required: 8 SR0, updated in 8.6 SR0

Command Line Usage

1. impNITDM fname:="c:\test.tdm" ;

2. impNITDM fname:="c:\test.tdm" options.importToSameSheet:=1;

3. impNITDM fname:="c:\Data1.tdm" options.bStructureOnly:=1;

X-Function Execution Options

Please refer to the page for additional option switches when accessing the x-function from script

Variables

Display
Name 		Variable
Name 		I/O
and
Type 		Default
Value 		Description
File Name fname

Input

string

fname$
 Name of the file to be imported.
File Info And Data Selection trfiles

Input

TreeNode

<unassigned>
 This is used to show the information of the imported file, and also allows you to select the data to import.
Import Options options

Input

TreeNode

<unassigned>
 Specify import settings, including where to import the custom properties of a channel, whether to import all data channels to the same worksheet, and whether to import the structure only. Options:
  • bStructureOnly:Import Structure Only
    Specify whether to import only the structure of the file. If selected together with Save File Info. in Workbook, the reimport X-Function can be used to re-import a data selection after importing the file structure.
  • bSaveFileInfo:Save File Info. in Workbook
    If selected, the file information will be saved to the workbook. If not selected, the file information will not be saved in Organizer and the reimport will not work, but the import speed can be improved.
  • Scripts
    See ASCII Import for examples.
    • ScriptAfterEachImport:Script after Each File Imported
      Specify LabTalk scripts that will be executed after each imported file.
    • ScriptAfterAllImport:Script after All Files Imported
      Specify LabTalk scripts that will be executed only after all files being imported.
  • ImportChannelProp:Import Channel Properties
    Specify whether to import the properties of data channels.
  • CustomPropertiesChannel:Import Custom Properties of Channel to
    Specify where to put the custom properties of data channels. Only available when Import Channel Properties is selected. Options:
    • 0:Column Info Tree
      Put custom properties to User Tree of Column Properties dialog.
    • 1:User-Defined Parameter Row
      Put custom properties to user-defined parameter row.
  • ImportToSameSheet:Import All Groups to Same Worksheet
    Specify whether to import all data groups into the same worksheet. If selected, each group's information is stored to the Imported File tree of the Worksheet Organizer, and a user-defined parameter row is added for group name designating the group to which the data channel belongs.
Output orng

Output

Range

<active>
 This is used to specify the output range. See the syntax of Output Notations.
Header Info trheader

Output

TreeNode

<optional>
 For outputting header information. This is hidden from the GUI. Use of this variable is not supported.
Repeat Import reimp

Input

int

0
 For repeat import. Use of this variable is not supported.


Description

This X-Function is used for importing NI TDM data files generated by NI DIAdem Version 10.0. It allows you to import the structure of a file, and then separately re-import selected data using the reimport X-Function.

Examples

  1. In this example, we will import NI TDM data :

    2. a. From the Origin menu, select Data: Import from File: NI TDM (TDM, TDMS). This opens the TDMFiles dialog, allowing you to choose the import file.

    b. Browse to the folder containing your data file is. Select the file and click the Add File(s) button. Click OK to close the dialog box.

    c. In the impNITDM dialog box, Select the groups and channels you want by selecting the check-boxes to the right of them. Click OK to close the dialog.

  2. The following script command imports an NI TDM file (c:\test.tdm) without opening the dialog:
    3. Fname$="c:\test.tdm";
impNITDM;

Related X-Functions

impFile, impinfo, impFileSel
