2.7.45 impJNB
Contents
Menu Information
Data: Import from File: SigmaPlot (JNB)

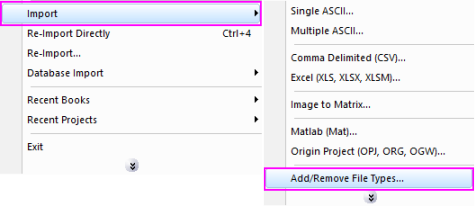

If you do not see this file type, choose Data: Import from File: Add/Remove File Types...
 | To add drag & drop support for a file type, see Import Filter Manager. |
Brief Information
Import SigmaPlot (JNB) file.
Command Line Usage
1. impJNB fname:="Sample.JNB"
2. fname$="Sample.JNB"; impJNB
3. impJNB fname:="Sample.JNB" orng:=Col(2)
4. impJNB trifles:="*.JNB";
X-Function Execution Options
Please refer to the page for additional option switches when accessing the x-function from script
Variables
| Display Name |
Variable Name |
I/O and Type |
Default Value |
Description |
|---|---|---|---|---|
| File Name | fname |
Input string |
|
Filename(s) of the SigmaPlot (JNB) file(s) to be imported. |
| File Info | trFiles |
Input TreeNode |
|
This is used for displaying the basic file information.
|
| Import Options | options |
Input TreeNode |
|
This is the TreeNode for the import filter. Users are not advised to use this variable.
|
| Output | orng |
Output Range |
|
The range for the imported data. See the syntax here. |
| Header Info | finfo |
Output TreeNode |
|
This is for outputting the header information. It is hidden from the GUI. Users are not advised to use this variable.
|
Description
This X-Function is for importing SigmaPlot JNB files.
Details on Some Dialog Options
- Import Options(options)
- Please see this page for more details.
Examples
1. The following example imports a SigmaPlot data to a worksheet:
- a. From the Origin menu, select Data: Import from File: SigmaPlot (JNB) or type
impJNB -din command window. This opens the SigmaPlot File dialog for you to choose the import file.
- b. Browse to the folder where your data file is. Select the file and click the Add File(s) button. Click OK to close the dialog box.
- c. In the impJNB dialog box, use the range selector to specify the output range for the Import Data Into control. Click Ok to close the dialog.
2. The following script command imports a SigmaPlot file (C:\samples.JNB) without opening the dialog:
fname$="C:\Sample.JNB";
impJNB;
