2.11.12 envelope(Pro)

Contents

Menu Information

Analysis: Signal Processing: Envelope

Brief Information

Create upper/lower envelope curve for a signal

Additional Information

Minimum Origin Version Required: 8.1 SR0

This feature is for OriginPro only.

Command Line Usage

1. envelope iy:=col(b) type:=2;

2. envelope iy:=col(b) type:=0 npts:=5;

X-Function Execution Options

Please refer to the page for additional option switches when accessing the x-function from script

Variables

Display
Name 		Variable
Name 		I/O
and
Type 		Default
Value 		Description
Input iy

Input

XYRange

<active>

Specifies the input data range.

Envelope Type type

Input

int

Upper Envelope

Specifies the type of envelope to be found. Option list:

  • upper:Upper Envelope
    Only the upper envelope will be found.
  • lower:Lower Envelope
    Only the lower envelope will be found.
  • both:Both Envelopes
    Both the upper and the lower envelopes will be found.
Smooth Points npts

Input

int

2

Smoothing is performed during the envelope detection. This variable controls the smoothing degree. The greater this value is, the smoother the envelope curve will be. See the algorithm page for details.

Output rd

Output

ReportData

[<input>]<input>

Specifies the output range.

Description

Envelope is a curve “enveloping” the source data. It is tangent to every peak in the source dataset.

This X-Function obtains the upper, lower, or both envelopes of the source data by applying a local maximum method combined with a cubic spline interpolation.

Examples

  1. The following example detects both upper and lower envelopes in the imported signal data .
    1. Import the file \Samples\Signal Processing\Sine Signal with High Frequency Noise.dat.
    2. Highlight the columns in the worksheet and select Plot: Line: Line from the Origin menu to create a line plot.
    3. Select Analysis: Signal Processing: Envelope from the Origin menu to bring up the dialog of the X-Function.
    4. Select Both Envelopes from the Envelope type drop-down list. Set Smooth Points to 1.

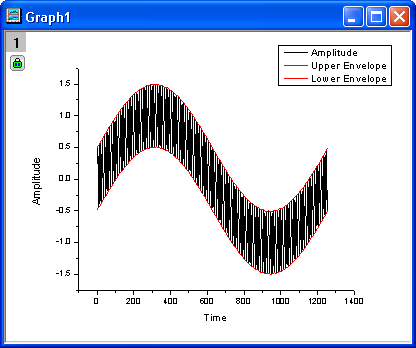

    5. Check OK to execute. The envelopes should be plotted on the graph. You will get the following result:
  2. The following scripts perform envelope detection without opening the dialog.
//import the desirable data into a new book.
filename$ = system.path.program$+"Samples\Signal Processing\Gaussian Envelope.dat";
newbook;
impASC filename$;
envelope iy:=col(b) type:=both;//get both upper and lower envelopes to the data

More Information

For more information, please refer to our User Guide.
