1.2.4 Creating Tab-based Dialog

X-Function, Tab-based Dialog

The following example shows how to create a tab-based X-Function dialog, as well as an event1 function to catch when tab is changed.

1. Press F10 to open X-Function Builder. Type "tabdlg" into the X-Function edit box as the X-Function name.

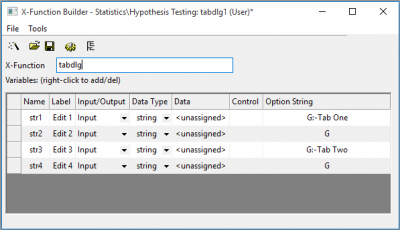

2. In the Variables panel, Click on x to change name to str1. Change Data Type to string. Change Option String to G:-Tab One. Right click on the grey area in the panel and add three variables and change the properties of the variables as shown below. Click Save to save this X-Function.



3. Open the X-Function in Code Builder, and add the following line of code at the beginning. X-Function, event1

   #include <event_utils.h>

   Put the following code in TabDialog_event1.

   //Codes for tab change
   if ( GETNE_ON_ACTIVE_TAB_CHANGE == nEventID )
   {
   	int nLastTabIndex = -1;
   	if ( !trGetN.GetAttribute(STR_LAST_TAB_INDEX_ATTRIB, nLastTabIndex) )
   		nLastTabIndex = -1;
   	printf("TabChanged: Old=%d, New=%d\n", nLastTabIndex, nRow);
   	trGetN.SetAttribute(STR_LAST_TAB_INDEX_ATTRIB, nRow);
   }

   Put the following code in TabDialog_before_execute.

   if ( is_xf_startup(nGetNDialog, dwCntrl) )
   {
   	STATS_GETN_GROUPED_SUBNODES_AS_TABS; //Show the branches in tab
   	GETN_ENABLE_TABCHANGE_EVENT(trGetN, true); //Enable event for tab change
   }

4. Click the button.
5. Run tabdlg -d in the Command window to open the dialog. Switching between the tabs will trigger the event and print out messages like "TabChanged: Old=-1, New=2".
