Tutorial for Moving Average Smoothing

Summary

This Moving Average Smoothing tool is used to smooth the time series without obvious trend and seasonality.

Tutorial

This tutorial uses App's built-in sample project. To open this sample OPJU file:

  1. Right click the Time Series Analysis App icon Time Series Analysis icon.png in the Apps Gallery and choose Show Samples Folder.
  2. A folder will open. Drag-and-drop the project file TSA Sample.opju into Origin.

Moving Average

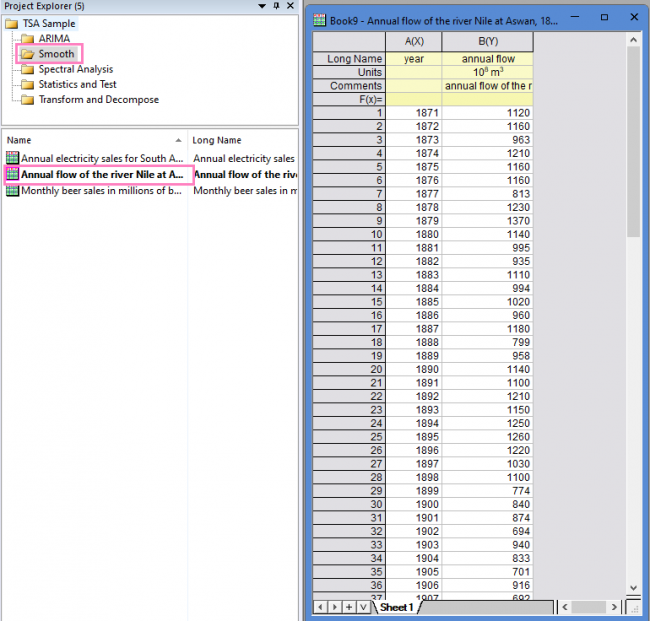

  1. Expand Project Explorer docked on the left. Select folder Smooth and go to workbook "Annual flow of the river Nile at Aswan, 1871-1970".
    Single Exp Smoothing 01.png
  2. Highlight B, and then click the Time Series Analysis App icon Time Series Analysis icon.png in the Apps Gallery.

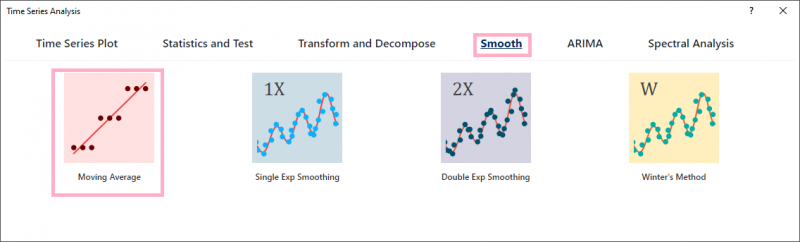

  3. In the Time Series Analysis window, select Smooth tab and then click Moving Average Smoothing button.
    Moving average toolbar.png

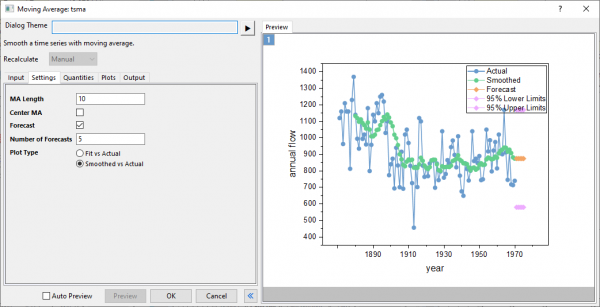

  4. A dialog will open as below.
    Moving average dialog.png
  5. Set MA Length to 10. Uncheck Center MA. Enter 5 in Number of Forecasts.
    Note: MA Length is the number of consecutive data that used to calculate averages as smoothed value. The larger this value, then the output line will be smoother.
    Center MA controls to output the each moving average value at the center of its range, instead of at the end.

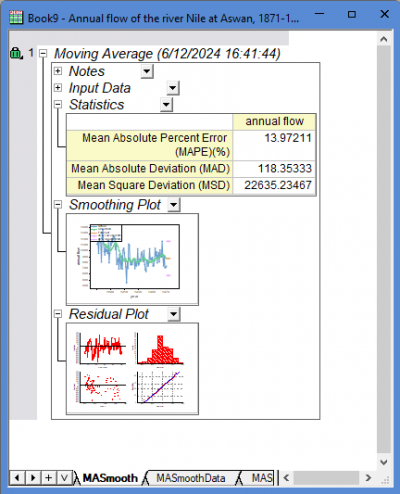

  6. Click OK button to perform the smoothing. You will get the results below:
    Moving average report.png
