Summary

This tutorial will show you how to create a graph with baidu map as background. Baidu map is recommended if the desired background map is inside the boundary of China.

What will you learn

This tutorial will show you how to:

• download Baidu Map Import app from App Center.
• use the App to add Baidu map to a 3D graph.

Steps

1. Start with a new project. With a blank workbook active, select from menu Data: Connect to Web. In the dialog, enter following URL link:
   https://www.originlab.com/doc/Tutorials/Baidu-Map
   Select table/_1 to import data from this page. There are PM 2.5 values of several observation points in Beijing city at mid-day of 18/11/2020.
2. Select column C header and click X on the mini toolbar that pops up. This sets column B as X. Similarly, set column E as Z.

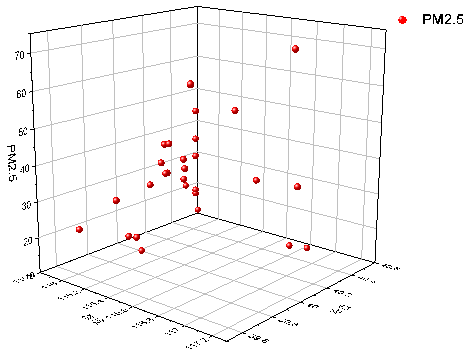

3. Highlight column D and select menu Plot: 3D: 3D Scatter to make a 3D scatter plot.

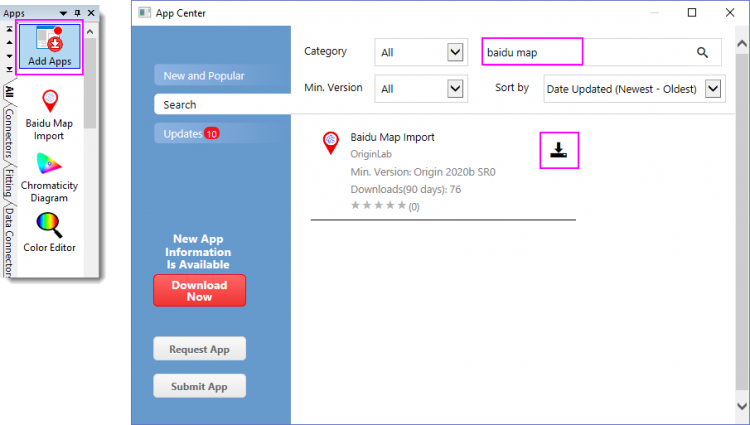

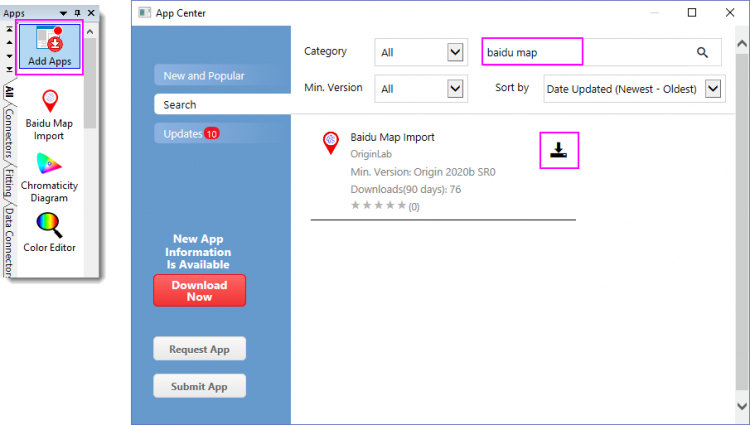

4. Click Add Apps icon in Apps window that docks on the right side of Origin workspace and search baidu map. Click the download icon to download it.

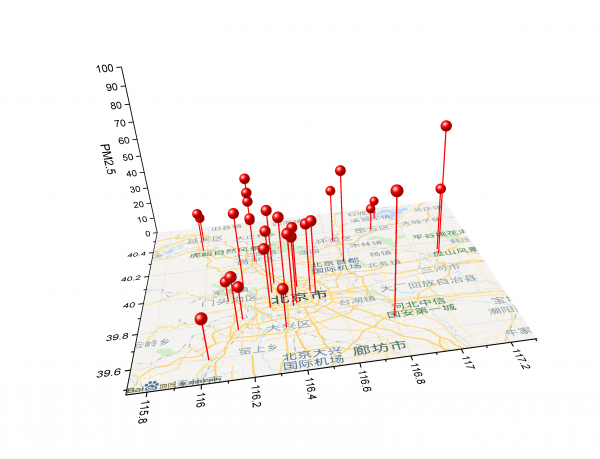

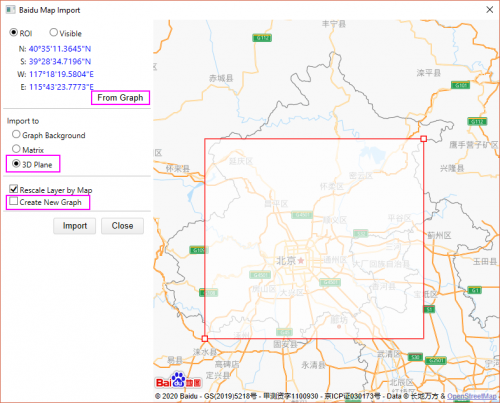

5. With the 3D scatter graph window active, launch the Baidu Map Import app. Click the From Graph button first to relocate the ROI box to cover all the observations in the preview window. Change Map Type to 3D Plane. Clear Create New Graph checkbox. Then click Import button. Now The baidu map is added to the active graph as background in the XY plane. Close the App.

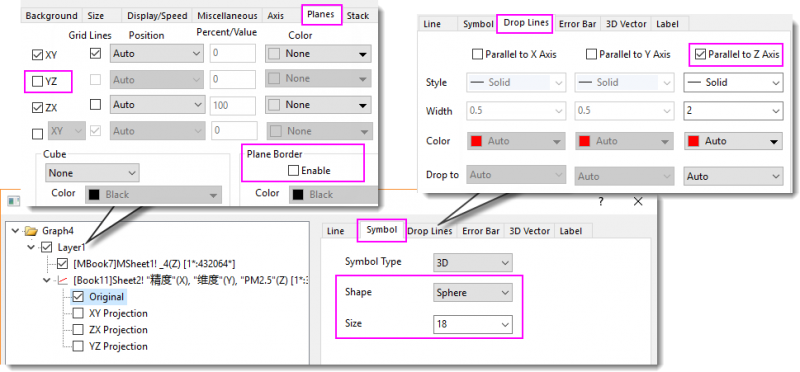

6. Customize the graph. Double click the Symbol to open the Plot Details dialog.
   • Turn on drop lines to XY plane (plot level > Original branch > Drop Lines tab),
   • Change symbol shape to Sphere and enlarge its size to 18 (plot level > Original branch > Symbol tab).
   • Hide YZ plane and Plane Border (Layer level > Planes tab).



7. Customize axes. Delete X&Y axis title. Select menu Format: Axes: Z Axis. In the Scale tab of Z Axis dialog, change scale From 0 To 100.
8. Use 3D Rotation toolbar to rotate the graph to a desired angle.

Data

Observation		Longitude	Latitude	PM2.5
DongSi	东四	116.23128	40.22077	42
GuanYuan	官园	116.35586	39.93239	45
Olympic Sports Center	奥体中心	116.41219	39.98538	35
Agriculture Exhibition Center	农展馆	116.46865	39.94429	39
WanLiu	万柳	116.29696	39.96706	36
Northern XiQu	北部新区	116.17035	40.04928	42
FengTai Garden	丰台花园	116.28371	39.86265	34
YunGang	云岗	116.162	39.81044	19
GuCheng	古城	116.23128	40.22077	37
FangShan	房山	116.14294	39.74788	30
DaXing	大兴	116.34159	39.72684	22
YiZhuang	亦庄	116.23128	40.22077	26
GuYi	顺义	116.65477	40.13012	54
ChangPing	昌平	116.23128	40.22077	50
MenTouGou	门头沟	116.10146	39.94048	12
PingGu	平谷	117.12141	40.14062	37
HuaiRou	怀柔	116.63177	40.316	32
MiYun	密云	116.84317	40.37625	14
YanQing	延庆	115.97503	40.45678	15
DingLing	定陵	116.23128	40.22077	27
BaDaLing	八达岭	115.9779	40.36214	24
MinYun Reservoir	密云水库	116.88429	40.47824	12
DongGao	东高村	117.11673	40.10479	73
YongLeDian	永乐店	116.79679	39.70886	66
LiuLi River	琉璃河	116.02432	39.59867	23
YongDingMenNei	永定门内	116.3993	39.87311	38
NanSanHuan	南三环	116.38432	39.85701	41
DongSiHuan	东四环	116.48972	39.91923	42
