1.5 FAQ-115 How do I change the position of the X and Y axes?

Last Update: 1/2/2018

2D

  1. To roughly move axis to new position, simply drag the axis.
  2. To precisely move axis to a position, double-click on the axis to open the Axis dialog. Go to the Line and Ticks tab, set the Axis Position.

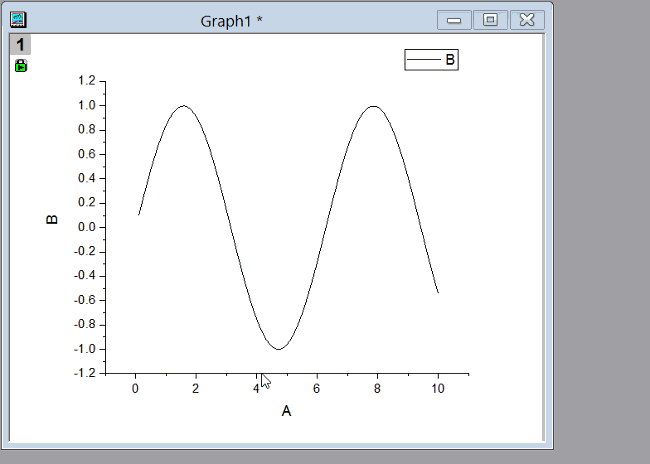

Axis position.gif

3D

  1. Click once in graph to select the graph frame.
  2. Double click to open Plot Details dialog for layer.
  3. On Position tab, change Position from Auto to At Position and enter exact value.

Note: As long as position isn't Auto, user can later select the plane and drag it to new position.

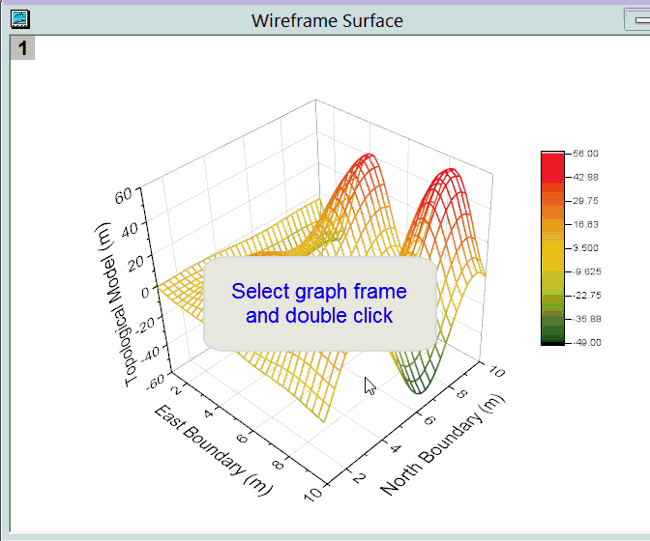

Axis position 3d.gif


Keywords:swap, horizontal, vertical, move
