1.167 FAQ-829 How can I right-align legend text or arrange the graph legend horizontally?

Last Update: 6/2/2023

To right-align legend text:

By default, legend text is left-aligned. To right-align legend text,

• Set = 1. See of how to change a system variable value.
• Select the legend object, Click the Alignment button on the Format toolbar and choose Right (or Center to center text).

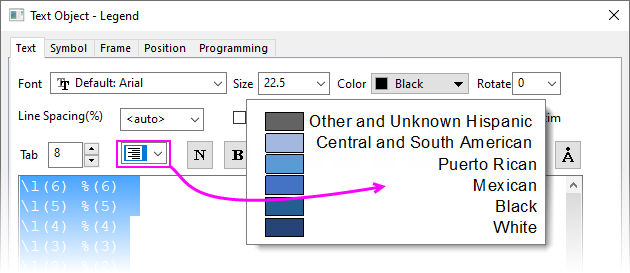

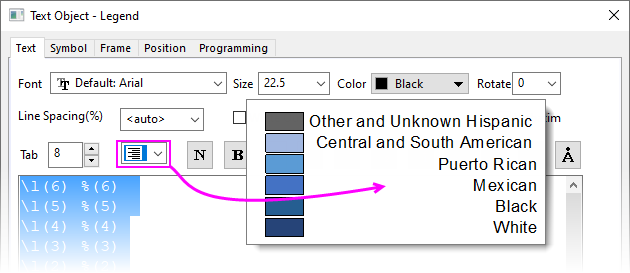

• Click on the legend object, right-click and choose Properties. On the Text tab of Text Object dialog, make your selection from the Alignment drop-down list.

For those seeking a greater degree of control over legend alignment, see .

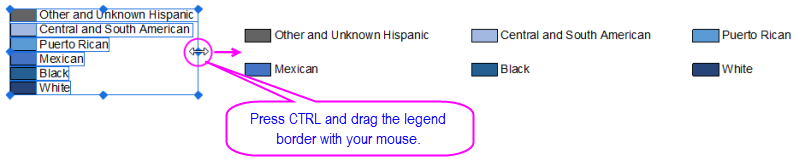

To arrange the legend horizontally:

1. Select the legend in order to show up the legend border.
2. Press CTRL and drag to re-arrange the legend.

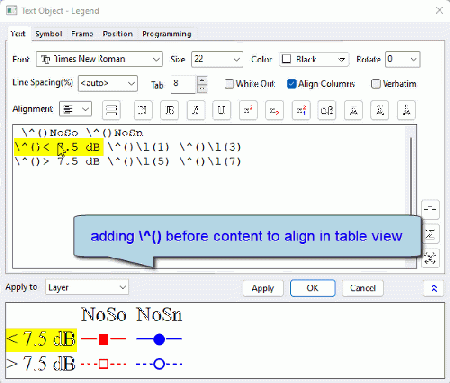

To align the legend in a table view

We can add cell anchor \^() to put object on the right side of the anchor in a cell. For more details, please refer to the

---

Keywords:Legend, Alignment, right-aligned, horizontal, legend text
