30.1.170 Step

Contents

Function

y= \begin{cases} A,\ \ \ \ x<x_1 \\ B,\ \ \ \ x\ge x_1 \end{cases}

Brief Description

Piecewise constant function with two segments.

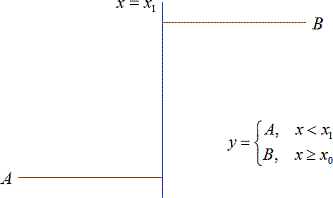

Sample Curve


Parameters

Number: 3

Names: A, B, x1

Meanings: A = Level of the first piece, B = Level of the second piece, x1 = Jump point

Lower Bounds: none

Upper Bounds: none

Script Access

nlf_Step(x,A,B,x1)

Function File

FITFUNC/Step.FDF

Category

Waveform, Baseline
