30.3.20 RationalTaylor
Function
\[z=\frac{z_0+A_{01}x+B_{01}y+B_{02}y^2+C_{02}xy}{1+A_1x+B_1y+A_2x^2+B_2y^2+C_2xy}\]
Brief Description
Taylor Series Rationals

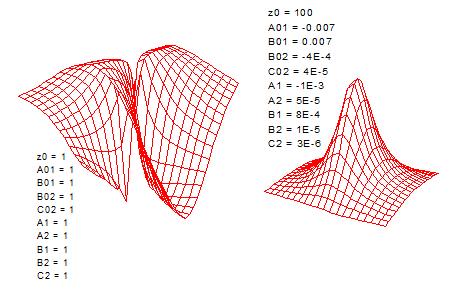

Sample Curve
Parameters
Number: 10
| Name: | Meanings: | Lower Bounds: | Upper Bounds: |
|---|---|---|---|
|
\[z_0\] |
z offset |
||
|
\[A_{01}\] |
|||
|
\[B_{01}\] |
|||
|
\[B_{02}\] |
|||
|
\[C_{02}\] |
|||
|
\[A_1\] |
|||
|
\[A_2\] |
|||
|
\[B_1\] |
|||
|
\[B_2\] |
|||
|
\[C_2\] |
Script Access
Function File
fitfunc\RationalTaylor.fdf
