Radial Bar and Radial Stacked Bar Plot

Radial-Bar-Plot

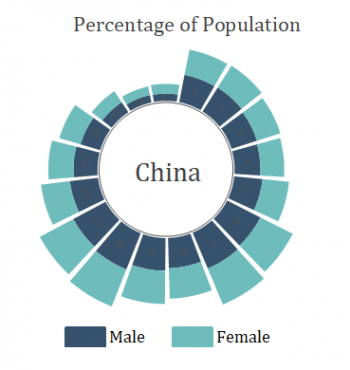

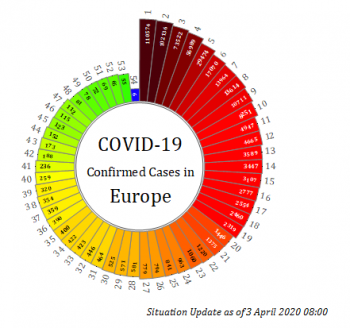

Radial Bar	Radial Stacked Bar

Data Requirements

Select at least one pair of XY columns.

Creating the Graph

Select Plot > Specialized: Radial Bar Plot/Radial Stacked Bar Plot

Template

RadialBar.otpu ; RadialStackedBar.otpu (All above are installed to the Origin program folder).

Notes

• These two plot types are variants of Stacked Radial Plot.
• Radial Bar plot has labels by default. And, the Spoke Style is Sector by default.
• The Stack Offset for the Radial Stacked Bar plot is Cumulative.
