19.1.10.8 Peak Analyzer, Subtract Baseline
PeakAnalyzer-SubtractBaseline

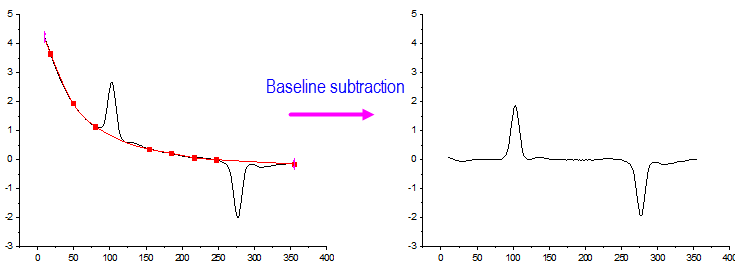

This page is available when Subtract Baseline is selected for Goal. It helps you to get the subtracted data and the baseline.

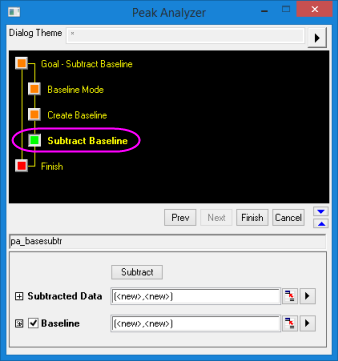

- Menu Command: Analysis: Peaks and Baseline: Peak Analyzer: Open Dialog
- Window Types: Workbook, Graph
Dialog Theme
Subtract Baseline Controls
| Subtract
|
Click this button to subtract the baseline.
|
| No Subtract
|
Click this button to undo the baseline subtraction.
|
| Subtracted Data
|
Specifies the destination for the subtracted data. See Output Results.
|
| Baseline
|
Specifies the destination for the baseline data. See Output Results.
|
