3D Surface from XYZ Data
3D Surface from Matrix
_Color_Fill_Tab/400px-Color_Fill_Tab_1_XYZ.png?v=75919)
_Color_Fill_Tab/400px-Color_Fill_Tab_1.png?v=75918)

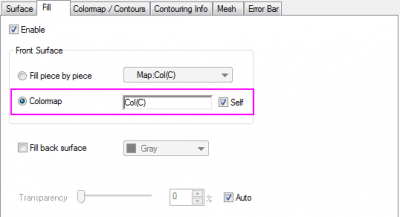

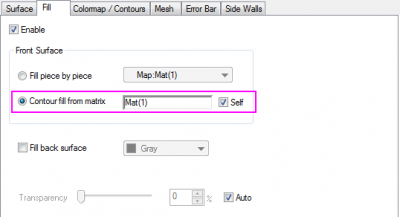

Once you plot a 3D surface plot from either XYZ data or matrix(include virtual matrix), at the plot level, there will be a tab, Fill.
3D Surface from XYZ Data
|
3D Surface from Matrix
|
|
|
When enabled, there are two modes for applying color to the front surface.

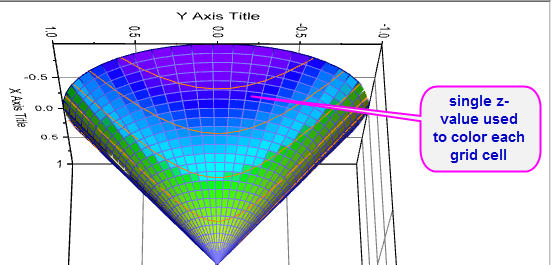

Use grid lines as the color fill boundary.
_Color_Fill_Tab/Color_Fill_Tab_2.png?v=69823)
For a general explanation of color lists, see Customizing Data Plot Colors.
For information on Indexing, Direct RGB and Color Mapping, see Using a Dataset to Control Plot Color.
_Color_Fill_Tab/Color_Fill_Tab_3.png?v=69824)

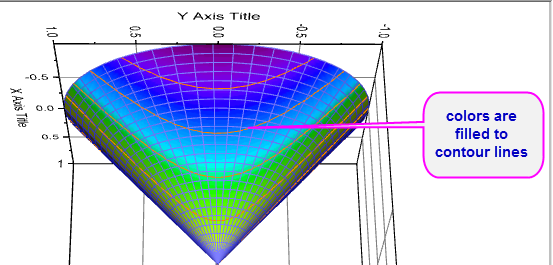

When the surface is created from XYZ data, you can select another column as colormap to fill color to contour lines. If check Self check box, the current Z column will be used as colormap to fill the surface; clear the Self check box, you can select another column(except the current Z column) in current worksheet as colormap.
When the surface is created from matrix object, you can specify a matrix to fill color to contour lines. Note that you can choose any matrix object in the matrix using the drop-down list; or enable Self to use values in the current matrix object.

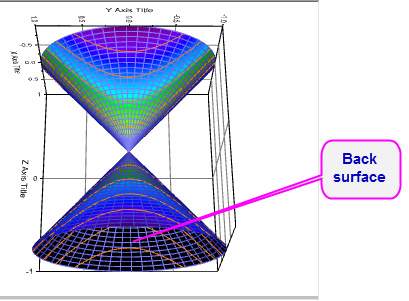

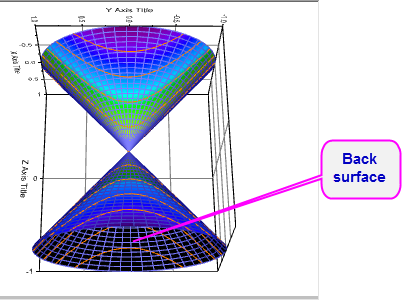

Specify the back color from the color list.
_Color_Fill_Tab/Fill_back_surface.png?v=69827)
Checking the Auto check box causes the transparency setting to follow the setting in the Surface tab.
Uncheck Auto to adjust the transparency manually.
