18.12.6 Multi-Scale Wavelet Decomposition

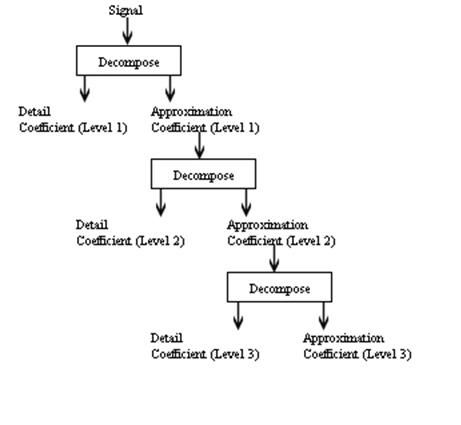

This function performs multi-level discrete wavelet decomposition. The input signal is first decomposed into approximation coefficients and detail coefficients. Then, depending on the decomposition level you have specified, the detail coefficients are decomposed into approximation coefficients and detail coefficients. The decomposition repeats n times, where n is the number of decomposition levels.

Multi-Scale Wavelet Decomposition.png

To use multi-scale wavelet decomposition:

  1. Make a workbook or graph active.
  2. Select Analysis: Signal Processing: Wavelet: Multi-Scale DWT from the Origin menu.

Topics covered in this section:

  • The Multi-Scale Wavelet Decomposition Dialog Box
  • Algorithms (Multi-Scale Wavelet Decomposition)
