29.9.33 Marginal Box Charts

Marginal Boxes1.png

Contents

Data Requirements

Select at least one X column and one Y column.

Creating the Graph

Select required data.

From the menu, select Plot > Statistical: Marginal Box Charts.

or

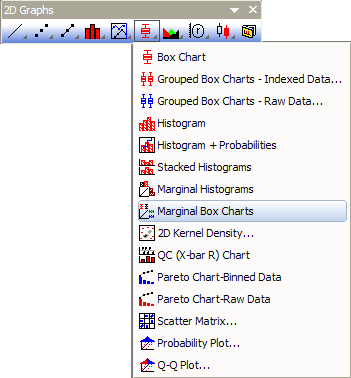

Click the Marginal Box Charts button on the 2D Graphs toolbar.

Marginal Boxes2.png

Template

MARGINBOX.OTP (installed to the Origin program folder).

Notes

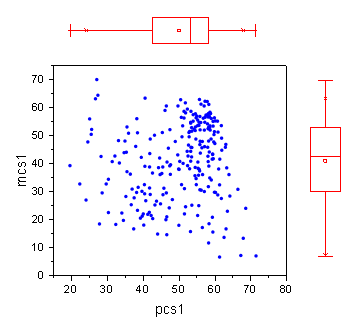

This graph is composed of three layers. One is a 2D scatter plot. A horizontal box chart represents the X-dimension distribution of the scatter data. A vertical box chart represents the Y-dimension distribution of the scatter data.
