32.1.142 Logistic

Contents

Function

\[y=\frac{A_1-A_2}{1+\left( x/x_0\right) ^p}+A_2\]

Brief Description

Logistic dose response in Pharmacology/Chemistry.

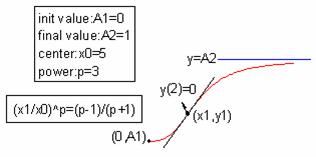

Sample Curve

CFF Image308.jpg

Parameters

Number: 4

Names: A1, A2, x0, p

Meanings: A1 = initial value, A2 = final value, x0 = center, p = power

Lower Bounds: p > 0.0

Upper Bounds: none

Derived Parameters

The concentration for 10% response: EC10=10^(log(x0) - log(9)/p)

The concentration for 20% response: EC20=10^(log(x0) + log(0.25)/p)

The concentration for half-way response: EC50=x0

The concentration for 80% response: EC80=10^(log(x0) + log(4)/p)

The concentration for 90% response: EC90=10^(log(x0) + log(9)/p)

Script Access

nlf_logistic(x,A1,A2,x0,p)

Function File

FITFUNC\LOGISTIC.FDF

Category

Origin Basic Functions, Growth/Sigmoidal,Statistics
