29.3.1 Line+Symbol Graph


Data Requirements

Select one or more Y columns or a range of data from at least one Y column. If there is an associated X column, X column supplies X values; otherwise, sampling interval of the Y column or row number is used.

Creating the Graph

Select required data.

From the menu, select Plot > Basic 2D: Line + Symbol.

or

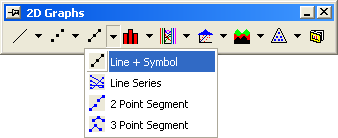

Click the Line + Symbol button on the 2D Graphs toolbar.

Line and Symbol 02.png

Template

LINESYMB.OTP (installed to the Origin program folder)
