6.9.2 The SQL Editor Dialog Box

1 Database Overview
2 The SQL Editor
3 Dialog Settings

Database Overview

Origin's database connectivity and import functionality has been updated. For more information, we suggest these blog posts:

The SQL Editor

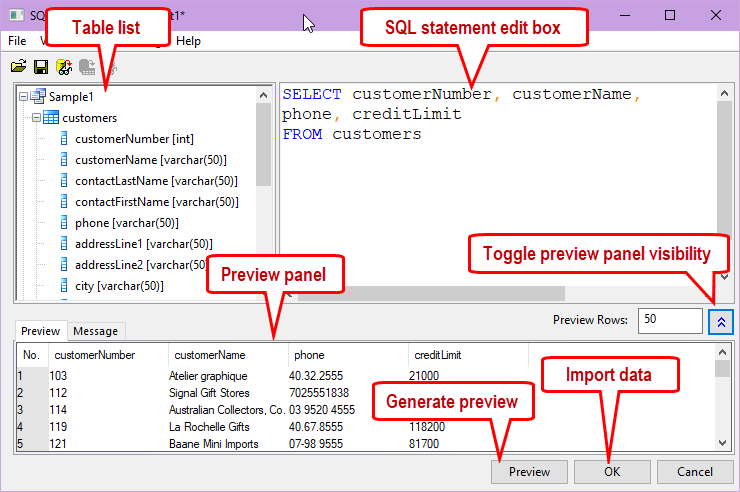

The SQL Editor is a simple GUI for setting up database connections, editing SQL strings and importing database data. The dialog includes:

Table list: List of tables in the selected database. For each table, there is a list of fields. Items may be double-clicked to add them to the SQL query being built in the SQL statement edit box.
SQL statement edit box: Manually type in SQL here. Double-click in Table list to add items from the list to the SQL.
Toggle preview panel visibility: Click to show or hide the preview panel.
Preview panel: Displays preview of data when the Preview button is clicked.
Generate preview: Click Preview to generate up to 50 rows of preview data.
Import data: Click OK to close the SQL Editor dialog, save the query to the worksheet, and import data specified by the query into the worksheet.

To adjust the height of top panel, toggle the Preview panel off (click the double up-arrow on the right), then drag to adjust height.

Note: By default, views are hidden in the SQL Editor table list. You can enable views by setting the value of LabTalk system variable @DBSV = 1. For information on changing the value of LabTalk system variable see FAQ-708 How do I permanently change the value of a system variable?

Dialog Settings

The File menu

Options in this menu work for establishing a database connection, and managing the connection and query files (See this blog post for an explanation of *.ODS and *.ODQ files).

New	Start a completely new connection with a blank SQL query. Opens the Data Link Properties dialog.
Open	Opens an existing Query file (.ODQ file) or a Data Source file (.ODS file).
Save to Active Worksheet	Saves connection information and SQL statement to the active worksheet. Good option if you want to save that information but don’t want to import data immediately. Use File: Close to close the dialog afterwards.
Save Connection As	Creates an *.ODS file from current connection information. If you want to include credentials/login info in the connection, do not encrypt it beforehand.
Show Connection String	Displays the connection string for current connection in the Message tab of the preview panel.
Edit Connection String	Modify some part of the current connection string. Or use it to copy connection string to clipboard.
Save Connection and Query As	Creates an *.ODQ files from current connection information and SQL statement.
Close	Closes the dialog.

The View menu

Text Size	Adjust SQL statement editor font size.
Show Table List	Show or hide left panel. Origin reads database metadata to construct this table. This may take time to construct. Hiding the table list can speed up connecting to a large database. Double-click a node to add it to the right SQL statement edit box.
Show Table Views in Table List	Show or hide table views in the table list.

The Query menu

LabTalk	Opens the LabTalk Support Settings dialog. This dialog lets you define LabTalk variables, execute Labtalk script and use in LabTalk in your SQL string. The dialog options include: Enable LabTalk (%, $) Substitution: Check to enable LabTalk substitution in SQL string. Ignore Substitution Inside Single Quotes: Check to ignore substitution inside ' '. Before Query Script: Script that runs before applying a SQL string. This is used to define LabTalk variables, etc. More information, please see the examples below.
Preview Substituted String	Preview the actual SQL string when using LabTalk in right panel. When it's checked, the SQL statement edit box isn't editable.
Preview	Preview the SQL query results in bottom Preview tab.

LabTalk

Opens the LabTalk Support Settings dialog. This dialog lets you define LabTalk variables, execute Labtalk script and use in LabTalk in your SQL string. The dialog options include:

Enable LabTalk (%, $) Substitution:
Check to enable LabTalk substitution in SQL string.
Ignore Substitution Inside Single Quotes:
Check to ignore substitution inside ' '.
Before Query Script:
Script that runs before applying a SQL string. This is used to define LabTalk variables, etc.

More information, please see the examples below.

Preview Substituted String

Preview the actual SQL string when using LabTalk in right panel. When it's checked, the SQL statement edit box isn't editable.

Preview

Preview the SQL query results in bottom Preview tab.

Examples: Use LabTalk in your SQL string

Suppose the original SQL string is:

SELECT country, years, amount FROM salesrecords
WHERE country = 'USA' AND years = 2010

To change the condition, you can use LabTalk variables in a WHERE clause. For example, open LabTalk Support Settings (Query: LabTalk) and enter a Before Query Script like this:

%A = Japan; //define a string variable
int YY = 2010; //define an integer variable

And change the SQL into

SELECT country, years, amount FROM salesrecords
WHERE country = '%A' AND years = $(YY)

Then the resulting SQL would be:

Enable LabTalk (%, $) Substitution -- Unchecked.

SELECT country, years, amount FROM salesrecords
WHERE country = '%A' AND years = $(YY)

Enable LabTalk (%, $) Substitution -- Checked, Ignore Substitution Inside Single Quotes -- Unchecked.

SELECT country, years, amount FROM salesrecords
WHERE country = 'Japan' AND years = 2010

Enable LabTalk (%, $) Substitution -- Checked, Ignore Substitution Inside Single Quotes -- Checked.

SELECT country, years, amount FROM salesrecords
WHERE country = '%A' AND years = 2010

To use an actual '%' sign when you have unchecked Ignore Substitution Inside Single Quotes, use a double percent, '%%', instead.

The Settings menu

Import Data by OLE DB	Use OLE DB for importing data. (Enabled for both OLE DB and ODBC).
Import Data by ODBC	Use ODBC for importing data. (Only enabled for ODBC connections).
Auto Resize Worksheet	Auto resize worksheet column width to fit record size.
Encrypt Login Info	Encrypts credentials/login info such that it is no longer human-readable when displayed in Origin.

Buttons

Butons are provided for most frequently used menus in this dialog, including:

Open	File: Open... menu	Open an .ODQ or .ODS file.
Save	File: Save to Active Worksheet/Save Connection and Query menu.	If the dialog is opened by File: New... menu and not saved as .ODQ file yet, SQL Editor dialog title will show Untitled.ODQ. Then Save button will save Connection and Query to active worksheet only. If the current connection or query is loaded from .ODQ file or has been saved as .ODQ file, the SQL Editor dialog title will show the file name. Then Save button will save to the corresponding file. Note: Anytime you click Import button, the connect and Query will be automatically saved to active worksheet. If you open the SQL Editor again, Origin actually loads the query from the sheet and show the book and sheet name [Book1]Sheet1 in dialog title. If you make change again, and click Save, it will save to active worksheet.
Preview	Query: Preview menu	Preview the SQL query results.
Import	Query: Import menu	Import database data into worksheet.
Preview the query string after substituting all LabTalk variables	Query: Preview Substituted String menu	Preview the actural SQL string when LabTalk variables are defined and enable LabTalk (%,$) Substitution is checked in Query: LabTalk... dialog.
