30.3.5 Extreme2D
Function
![z=z_0+By+Cy^2+D\exp \left[ 1-\exp \left( \frac{E-x}F\right) -\frac{x-E}F\right]](/origin-help/en/images/Extreme2D/math-c0f715e46c1aa335b4033cac8a2010c2.png?v=0 "z=z_0+By+Cy^2+D\exp \left[ 1-\exp \left( \frac{E-x}F\right) -\frac{x-E}F\right]")
Brief Description
Non-linear Extreme Value Function

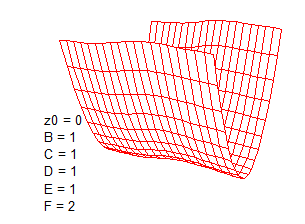

Sample Curve
Parameters
Number: 6
| Name: | Meanings: | Lower Bounds: | Upper Bounds: |
|---|---|---|---|
|
|
z offset |
||
|
B |
y range |
||
|
C |
z height |
||
|
D |
|||
|
E |
x offset |
||
|
F |
x width |
Script Access
Function File
fitfunc\Extreme2D.fdf
