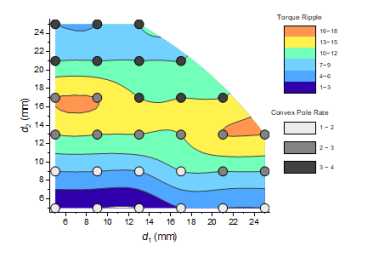

29.18.4 Contour - Categorical Z

Contour-Categorical

Data Requirements

• Worksheet:

• Select at least one Z column (or a range from at least one Z column). If the Z column has associated XY columns, then the XY columns are used; otherwise, the worksheet's default XY values are used.

or

• A block of worksheet cells (virtual matrix)

Creating the Graph

1. Activate the matrixsheet or select required data from worksheet.
2. From the menu, choose Plot > Contour : Contour - Categorical Z.

Please see more details on creating and customizing Color Fill Contour in the 3D and Contour Graphing chapter.

Template

TRICONTOUR_CATEGORICAL.OTPU

Notes
