31.9.2 Bar Chart

Contents

Data Requirements

Select one or more columns or a range of data from at least one column.

Creating the Graph

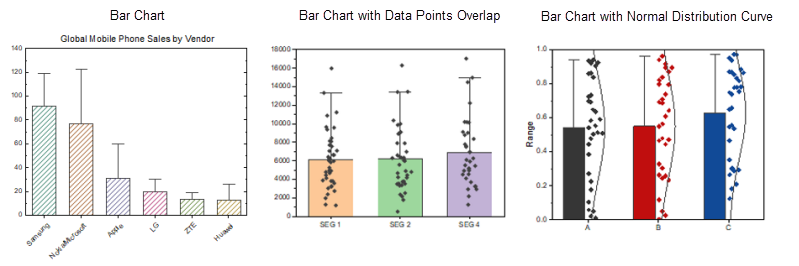

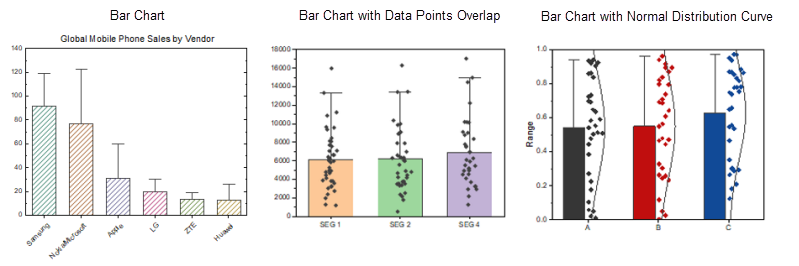

Bar Chart

  1. Select the data
  2. From Origin menu, select Plot > Statistical: Bar Chart

Bar Chart with Data Points Overlap

  1. Select the data
  2. From Origin menu, select Plot > Statistical: Bar Overlap

Bar Chart with Normal Distribution Curve

  1. Select required data.
  2. From the menu, select Plot > Statistical: Bar Normal.

Template

Bar Chart BARCHART.otp

Bar Overlap: BAR+DATA+OVERLAP.OTP

Bar Normal: BAR+DATA+NORMAL.OTP

Three templates above are installed to the Origin program folder.

Notes

The bar chart is a variation of the whose upper line represents Mean value and error bar represents the data range within 1.5*Interquartile Range by default. You can go to the of Plot Details dialog to change the settings.

By default, the vertical axis scale begins at 0; or if minimum dataset value is less than 0, the vertical scale reflects the minimum value.

The bar chart with data points overlapped can be created from bar chart, by setting Type to Bar + Data Overlap on the of Plot Details dialog and selecting Jitter Points on the . Similarly, the bar chart with Normal distribution curve can be created from bar chart by setting Type to Bar[Left] + Data [Right] on the of Plot Details dialog and setting Distribution Curve: Type to Normal on the .
