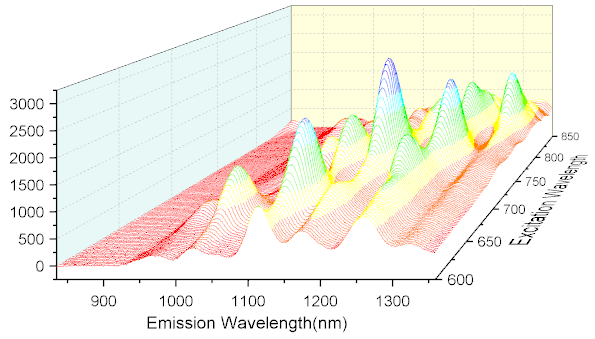

29.8.5 3D Waterfall Y:Color Mapping

Data Requirements

Select at least one Y column (or a range from at least one Y column). Ideally, select at least two Y columns (or a range of at least two Y columns). If there is an associated X column, X column supplies X values; otherwise, sampling interval of the Y column or row number is used.

Creating the Graph

Select required data.

From the menu, choose Plot > 3D : Y Color Mapped 3D Waterfall.

or

Click the Y Color Mapped 3D Waterfall button on the 3D and Contour Graphs toolbar.

Template

glWater3D.OTP (installed to the Origin program folder).

Notes

3D waterfall with with Y color mapping is an OpenGL-based 3D graph:

• The Y values in each column define an XY face with white fill color.
• Color mapping is applied to the lines in Y direction.
• Typically, all XY faces are arranged in the Z direction by values stored in a column label row. If a column label row contains numeric values, these are auto-detected and used to label the Z axis. Absent a row of numeric values, other column metadata, including column headings, can be used to label the Z axis. Ultimate control is via the Z Value Source drop-down on the Miscellaneous tab (Layer level) of Plot Details.
• You can enable data labeling for 3D Waterfall plots, using controls on the Label tab of Plot Details.
