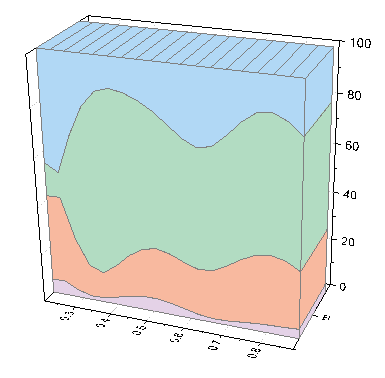

29.15.7 3D 100% Stacked Wall Graph

3D 100 Stacked Wall.png

Contents

Data Requirements

Select at least one Y column (or a range from at least one Y column). Ideally, select at least two Y columns (or a range of at least two Y columns). The Y values must have the same sign.

If there is an associated X column, X column supplies X values; otherwise, sampling interval of the Y column or row number is used.

Creating the Graph

From the menu, choose Plot > 3D : 3D 100% Stacked Walls.

Template

glStackWallsP.OTP (OpenGL) (Installed to the Origin program folder)

Notes

3D 100% stacked wall graph stacks Y columns in one wall, which height means the culmulation of Y values normalized into [0, 100].
