3.2 Plotting XY Data with the Same X

This example shows how to make a XY data plot with the same X in LabVIEW with Origin.

It is to demonstrate the following:
1. Calculate the expressions X(x) and Y(x) with the same variable x, x is increasing continuously when the program running, until the Stop button pressed down.
2. Make a 2D line plot by using X and Y dynamically on a graph layer.

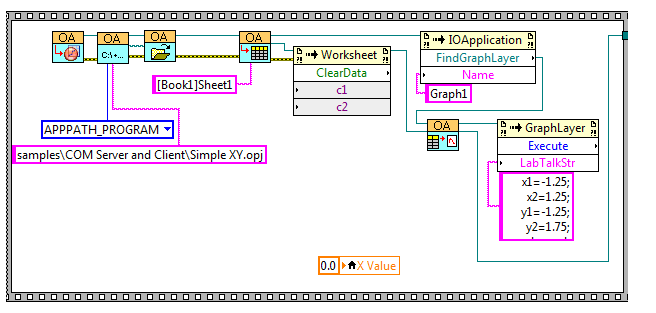

• The block diagram below is starting from an Origin project file named Simple XY.opj. The axis scale of the Graph in project was set by LabTalk script.

• Parametric function X(x) and Y(x) was generated, and the interval of parameter x is 0.1. The resulting values was sended to Worksheet and GraphLayer with a data update period of 100ms.
