The Export Graph as Image dialog is a simpler tool to export the current graph as an image file.

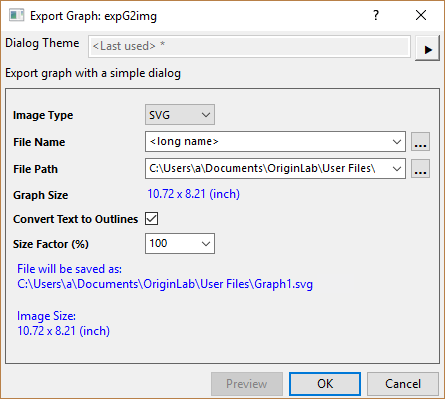

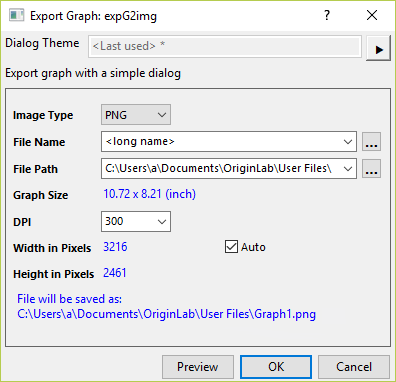

| Raster Image | Vector Image |
|---|---|
|
|
|
 | If you want to do some advanced settings during exporting the graphs, you are supposed to use the Export Graph dialog instead. |
Here, Origin supports four general image types: PNG (default), BMP, JPEG, TIFF, EMF, SVG and PDF
Specify the file name for the exported image. By default, the long name of current graph will be used.
Specify a path to store the exported image file. By default, user files folder will be used.
Check this checkbox to export the graph with a transparent backgound. Available for PNG and TIFF only.
Specify the resolution of the exported image in DPI (dots per inch). Available for raster format type (i.e. PNG, BMP, JPEG, TIFF)
Adjust the width and height of the image in pixels. By default, Auto is checked which means the actual graph size will be used.
Note: the Unit will follow the setting in the Plot Details dialog too.
Check this checkbox to convert the text element into a path to make sure even though the target PC doesn't support the corresponding font, the text can be displayed correct. Otherwise, the default font will be used to display which would cause some character font inconsistent with others.
Available for vector format type (i.e. SVG, EMF)
Scale exported image size by specified factor in percentage. Available for vector format type (i.e. SVG, EMF)
When dark mode is on, check this checkbox to export graph with dark mode color settings.
Click the Preview button to view the image export in an internal viewer. Note that the viewer supports:
